Grab Bar Deep Channel Trash Removal Screen

GRS - Coarse Bar Screen for the Protection of Pump Stations and Fine Screens

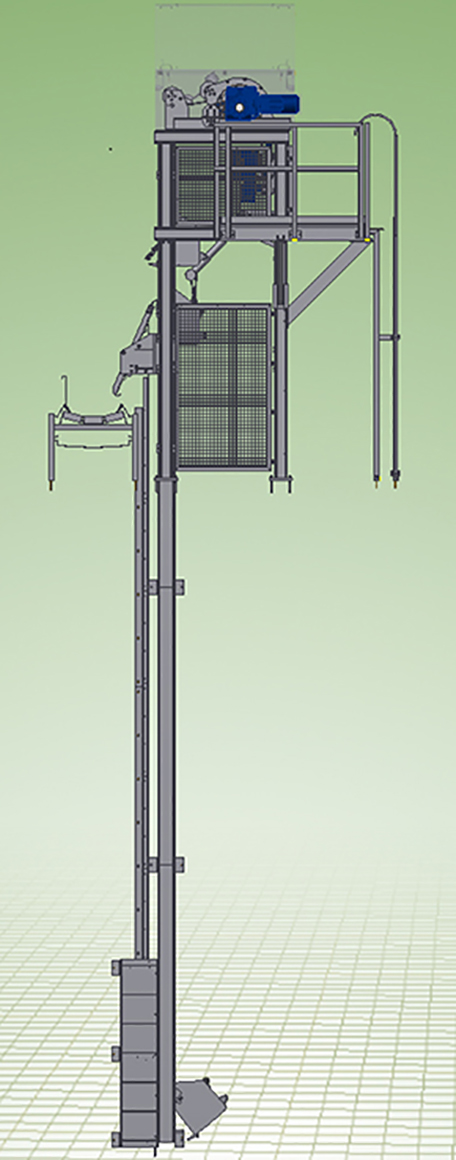

These coarse screens are designed to remove gross debris from deep channels in hard-to-access locations. The equipment consists of a stationary bar screen located at the bottom of the channel to capture debris. A channel recess is not required. The bar screen is attached by rails to the discharge apparatus located above the channel. A special Grab shovel picks up the debris at the bottom of the channel and transports it to discharge.

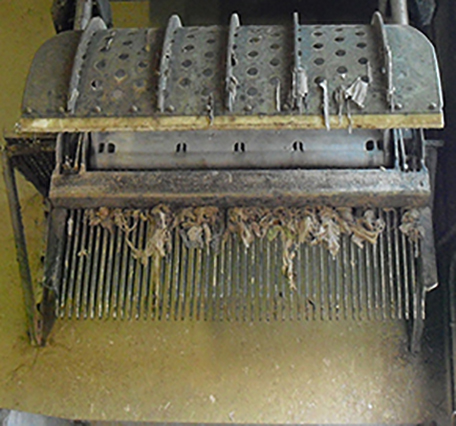

The shovel has rake teeth and operates in the manner of a reciprocating rake bar screen. The position of the rake is controlled by a rotary selector switch. A pivoting scraper dislodges the debris from the Grab screen above the operating floor at the discharge point. Debris can be deposited into a container, conveyor, washer compactor, etc . The Grab screen is raised and lowered by a stainless steel cable.


Did You Know?

These screens are used for water intake installations as well as wastewater
Grit passes through the bars without causing the screen to malfunction.
The steel apron prevents debris from falling back on the screen.
The Grab bar shovel is guided by a dual bearing arrangement.
Durable construction guarantees low maintenance.
Easily adapts to changing operational conditions.
Suitable for outdoor, cold weather operation.
