Wastemaster 90°

GCV & GCEV – Vertical Shafted Screw Screen

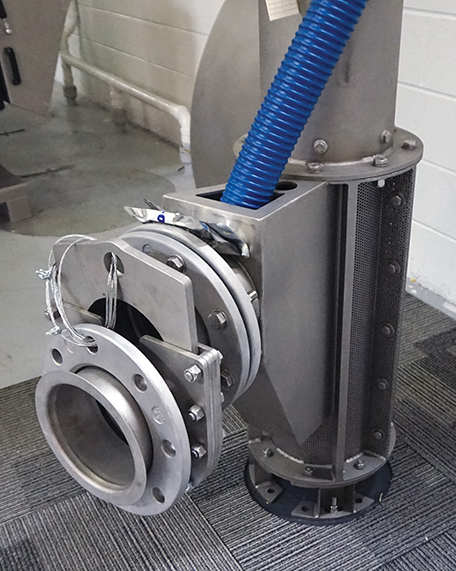

This SPECO screening system is designed for installations with narrow, limited access such as pump stations and deep CSO channels.  Wastewater enters the screen through a flanged connection with the supply pipe.  Collar clamp brackets and optional, adjustable elevation feet insure fast, easy installation.  A quick disconnect flange is also available along with a simple, stabilizing hoist mechanism.

Special segmented brushes provide continuous cleaning of the screen and are designed for ease of replacement.  The shaftless screw is a special high alloy steel with a fixed center pipe to prevent debris fall back.

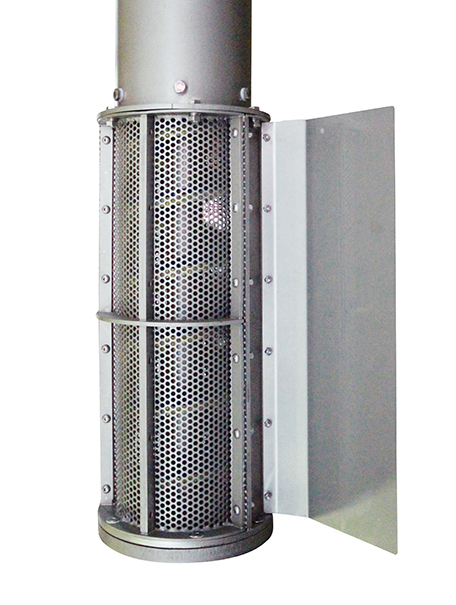

A variation of the 90° system is also available for deep, open channels.  The in-channel vertical design easily handles high upfront water levels and has all the well engineered features of the flanged screening system.


Did You Know?

The proprietary compaction zone achieves 40% solids volume reduction.
The discharge spout is manufactured from durable, weather resistant SINT® polymer.
A bag clamper system for the SINT discharge spout to accommodate a bagger cassette.
The discharge angle is based on customer requirements.
Vertical units can handle flows to 2 MGD.

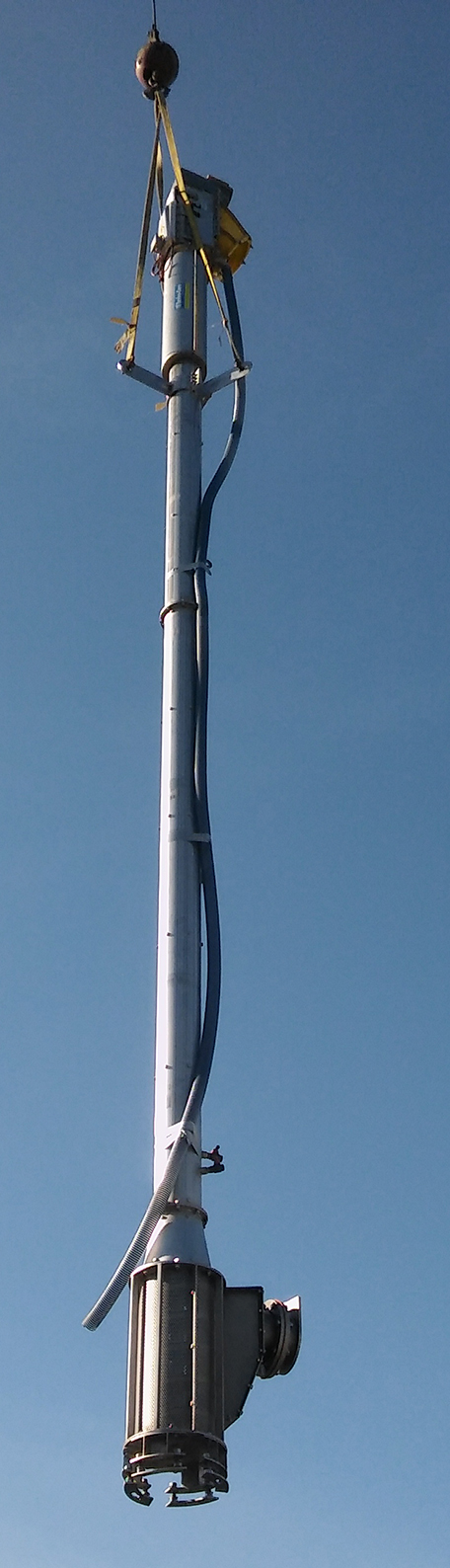

An optional simple lifting / lowering mechanism is available.
No rail systems are required.
